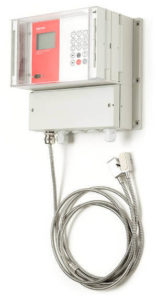

KATflow 150

Advanced Clamp-On Ultrasonic Flowmeter

FAST. FLEXIBLE. FUNCTIONAL.

The KATflow 150 is the premier product for flexibility and performance, providing the user with a comprehensive specification and a list of configuration options. The practical modular design and the wide variety of different transducer types available ensure this instrument is suitable for everything from simple water flow measurements to energy flow monitoring and automated process control.

The KATflow 150 is an advanced ultrasonic flowmeter for permanent installation. The dual-channel design allows the user to either save cost and time by performing two independent measurements simultaneously or to install two pairs of transducers on a single pipe for locations where there are non-ideal flow conditions. Where this is used the sumdifferenceaverage and maximum calculations are available in order to provide further processing of the data.

  • Dual flow monitoring with sumaveragedifference and maximum calculations
  • Process outputs including current, open-collector, relay
  • Communication options RS 485, Modbus RTU and HART* compatible output
  • Current inputs for temperature, pressure and density compensation
  • Up to 100,000 measurement data logger and software for sampling and data transfer
  • Optional heat quantity (thermal energy) measurement functionality

* HART® is a registered trademark of the HART Communication Foundation

  • Pipe diameter range 10 mm to 6,500 mm
  • Temperature range for sensors -30 °C to +250 °C (-22 °F to +482 °F), higher temperatures available on request
  • Lockable and sturdy IP 66 polycarbonate flowmeter enclosure
  • Selectable three-line LCD display and full keypad
  • Measurement of two flows simultaneously
  • Up to ten input or output slots available
Manufacturing and Process Cooling systems on injection moulding machines
Measurement of paint flows
Fire pump control
Water and Wastewater Dual-pipe metering for cost saving
Replacement of large bore electromagnetic flowmeters
Effluent metering
Building Services Installation on hot water lines
Dual-channel energy flow measurement
Installation on chilled water systems
Semiconductor Demineralised water measurements
Control of hydrofluoric acid flows
Measurement in clean room environment
Pharmaceutical Water for injection measurement
Measurement of sterile fluids
Clean in process (CIP) system monitoring
General Industry Automated process control
Measurement of furnace cooling flows
Fuel and oil consumption measurements
